2026 Volkswagen Atlas near Mooresville, NC

The 2026 Volkswagen Atlas is engineered with a turbocharged 2.0-liter TSI engine that produces 269 horsepower and 273 pound-feet of torque on regular fuel. This engine belongs to the Evo4 generation and uses direct injection along with a single-scroll turbocharger positioned close to the cylinder head to improve thermal efficiency. The lightweight engine design features a cast iron block with thin walls that reduces mass without affecting durability and aluminum alloy fasteners that further help minimize weight. The dual overhead camshaft layout incorporates variable cam phasing for both intake and exhaust valves and a variable lift system for the exhaust valves. These systems work together to provide a broad torque curve that supports acceleration in a wide range of driving situations.

An 8-speed automatic transmission transfers power to the front wheels or to all four wheels when equipped with the 4MOTION® system. The transmission is programmed to maximize efficiency and smooth shift quality. The integrated start-stop feature temporarily shuts the engine off in idle conditions when the brake pedal is applied and then restarts it when the brake is released. This function supports fuel conservation in low-speed traffic environments. The 2026 Volkswagen Atlas is capable of towing up to 5000 pounds on most trims when equipped with the factory-installed hitch and an appropriate trailer brake controller.

All-Wheel Drive Functionality and Drive Mode Adaptation

The 4MOTION® with Active Control system is designed to predict traction needs before wheelspin occurs. Under low-load situations or when coasting, the 2026 Volkswagen Atlas operates as a front-wheel-drive vehicle while the rear wheels remain disconnected to reduce energy loss. When additional traction is required, an electrohydraulic pump sends pressure to a multiplate clutch in the center differential. This pressure determines how much torque is transferred from the front axle to the rear axle. The system is capable of sending up to half of the available torque to the rear. It also uses electronic differential locks that function through the Electronic Stability Control system, which can briefly brake a wheel that begins to slip in order to maintain stable power transfer.

Drive Mode Select adjusts driving characteristics based on surface conditions. Front-wheel drive models provide Eco, Comfort, Sport, Custom, and Snow settings. Models equipped with all-wheel drive include these modes along with an off-road mode. In Snow mode, the transmission shifts earlier to prioritize traction, and the traction control system reduces engine power more quickly when wheel slip is detected. In Offroad mode, the throttle and transmission are configured to support low-grip conditions, and Hill Descent Control activates on grades of more than 10 percent. The off-road mode also uses a unique ABS pattern that allows wheels to lock momentarily, which can help build material in front of the tires on loose surfaces to shorten stopping distances.

Exterior Structure and Lighting Systems

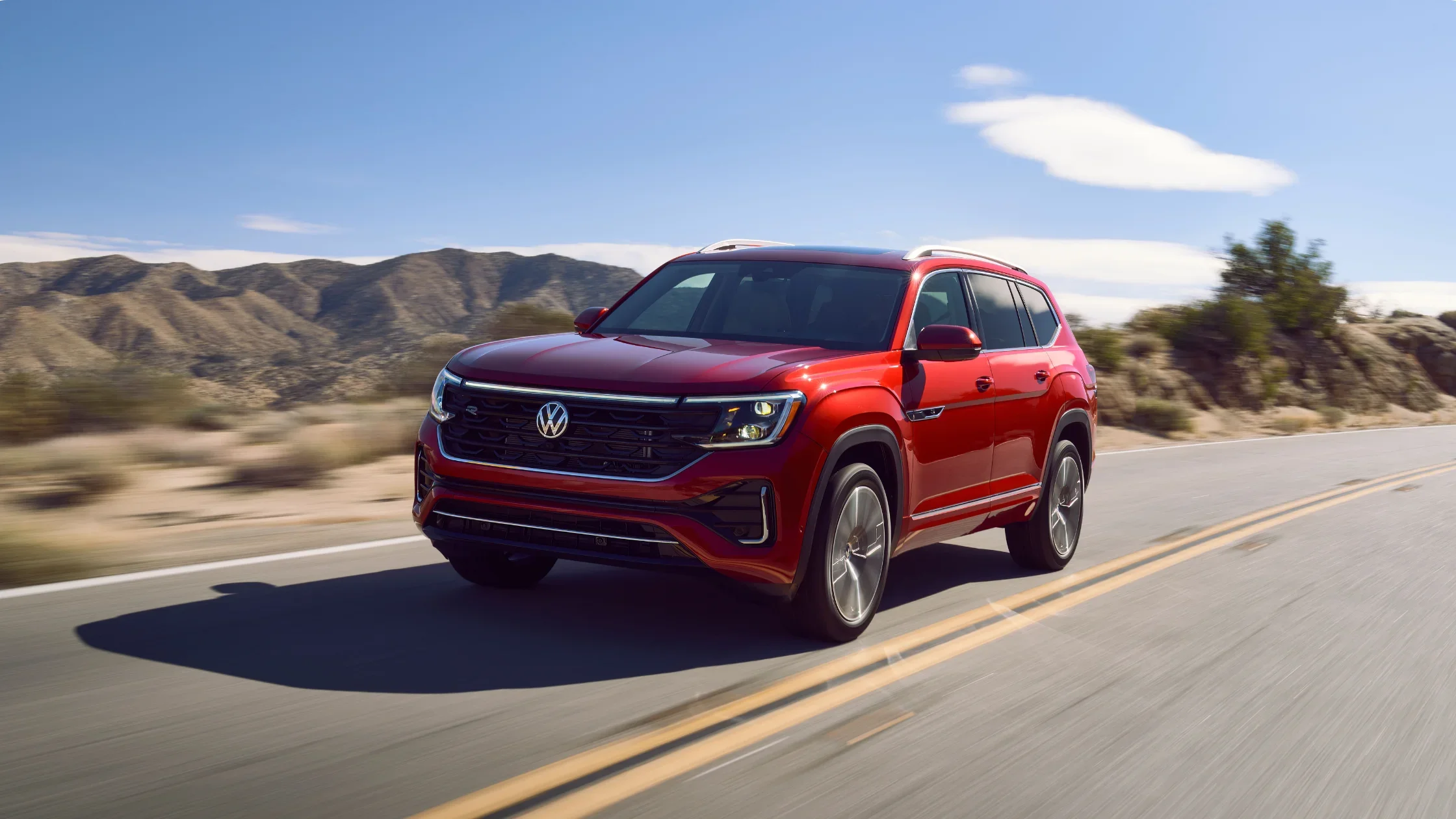

The exterior of the 2026 Volkswagen Atlas features a wide chrome grille with four horizontal bars positioned between full LED headlights that include low beams, high beams, and daytime running lights. The Adaptive Front lighting System helps illuminate curves by adjusting the direction of the headlights based on steering input. Most trims include an illuminated light bar and an illuminated Volkswagen logo that continue the front lighting signature across the rear of the vehicle as well. The Peak Edition trim introduces a more rugged appearance with a unique front fascia, additional cladding, a gloss black X-shaped lower fascia element, and contrasting chrome strips.

Standard roof rails provide utility for attaching cargo accessories. Black rails are included on SE, SE with Technology, and Peak Edition models, and silver rails are included on SEL trims. A large panoramic sunroof with a two-part glass system and powered sunshade is available on the SE with Technology and standard on the Peak Edition, SEL, and SEL Premium R-Line. At the rear, the 2026 Volkswagen Atlas uses LED taillights and a sculpted bumper design. Models above the base trim offer the Easy Open and Close tailgate. This feature allows the tailgate to be opened with a foot motion under the rear bumper when the key is within range.

Wheel options vary across trims and include 18-inch machined alloy wheels with all-season tires, 20-inch machined alloy wheels on the SE with Technology and SEL, and 21-inch two-tone machined alloy wheels on the SEL Premium R-Line. Peak Edition models receive 18-inch black alloy wheels with all-terrain tires. Exterior color choices include Avocado Green, Deep Black Pearl, Mountain Lake Blue, Opal White Pearl, Pure Grey, and Silver Mist. The vehicle measures 200.7 inches in length, 78.3 inches in width, and 70.4 inches in height with a drag coefficient of 0.33 and a ground clearance of 6.3 inches.

Interior Configuration and Cabin Functionality

The interior uses a clean layout with a soft-touch leatherette-trimmed dashboard and center console. The front door panels connect visually with the dashboard, which contributes to a unified cabin design. Standard seating surfaces are leatherette, while SEL models include leather with contrast stitching and heated outboard second-row seats. SEL Premium R-Line models add quilted leather surfaces with a diamond pattern on the driver, passenger, and outboard second-row headrests. Peak Edition interiors use Titan Black leatherette with light grey accents along with orange stitching and black metallic check pattern trim pieces.

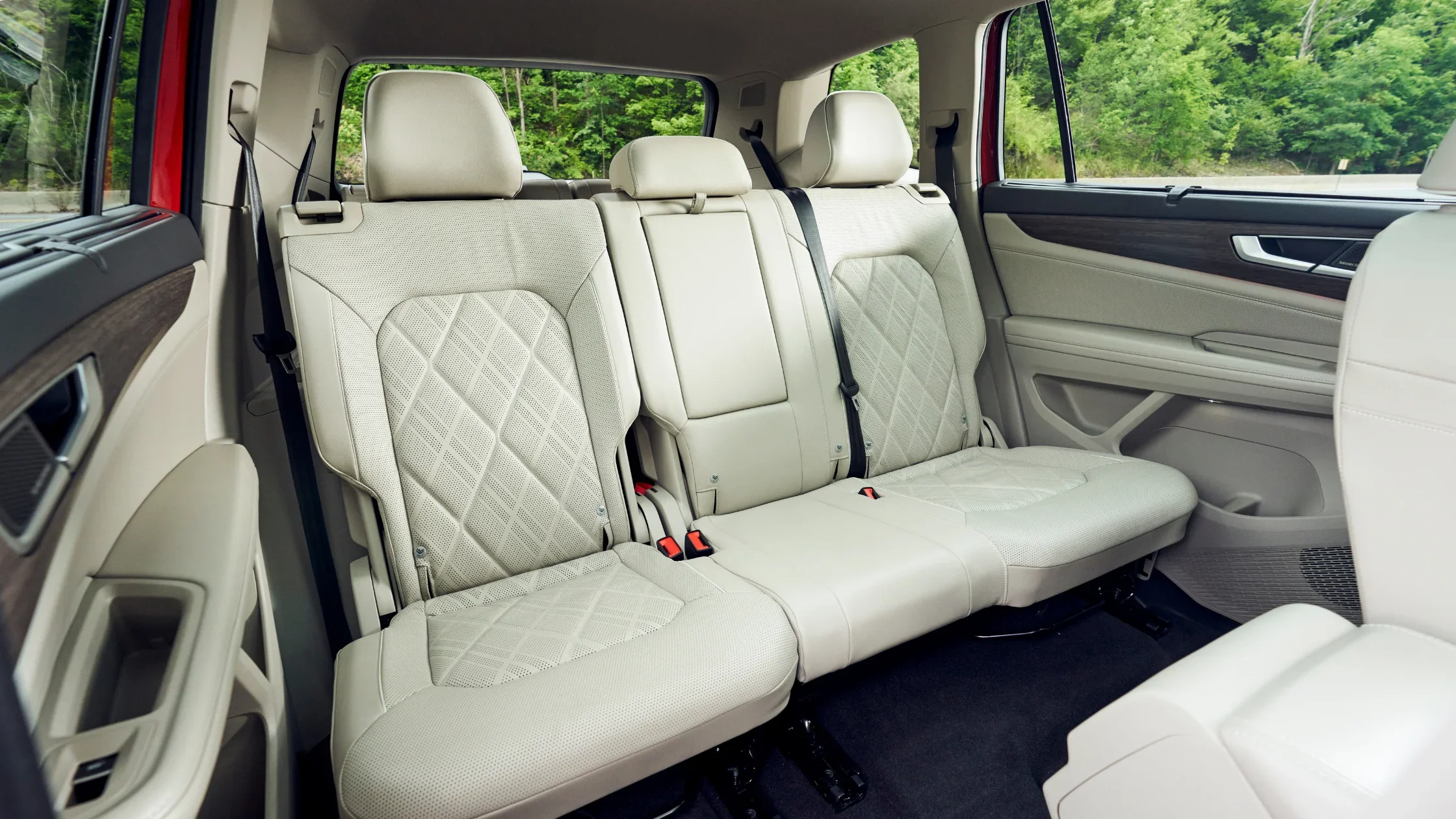

Ambient lighting with thirty selectable colors is available. The lighting extends into the front and rear doors and integrates with the backlit dashboard decor. Seating accommodates seven occupants with 153.7 cubic feet of passenger volume. Headroom measures 41.3 inches in the first row, 40.4 inches in the second row, and 38.3 inches in the third row. Legroom is 41.7 inches in the first row, 37.6 inches in the second row, and 33.7 inches in the third row. The second-row bench offers a 60/40 split along with a reclining function and separate sliding adjustment for each side. The tilt and slide mechanism allows third-row access without removing child seats. Captain’s Chairs are available on the SE with Technology and higher trims.

Cargo capacity reaches 96.6 cubic feet with both rear rows folded. With only the third row folded, the capacity is 55.5 cubic feet, and with all seats in use, it is 20.6 cubic feet. Standard comfort features include three-zone Climatronic® automatic climate control, heated and ventilated front seats, a heated steering wheel, and a 10-way power-adjustable driver’s seat. The SEL Premium R-Line adds four-way lumbar adjustment and massage functions for the front seats.

Digital Systems and Infotainment Capabilities

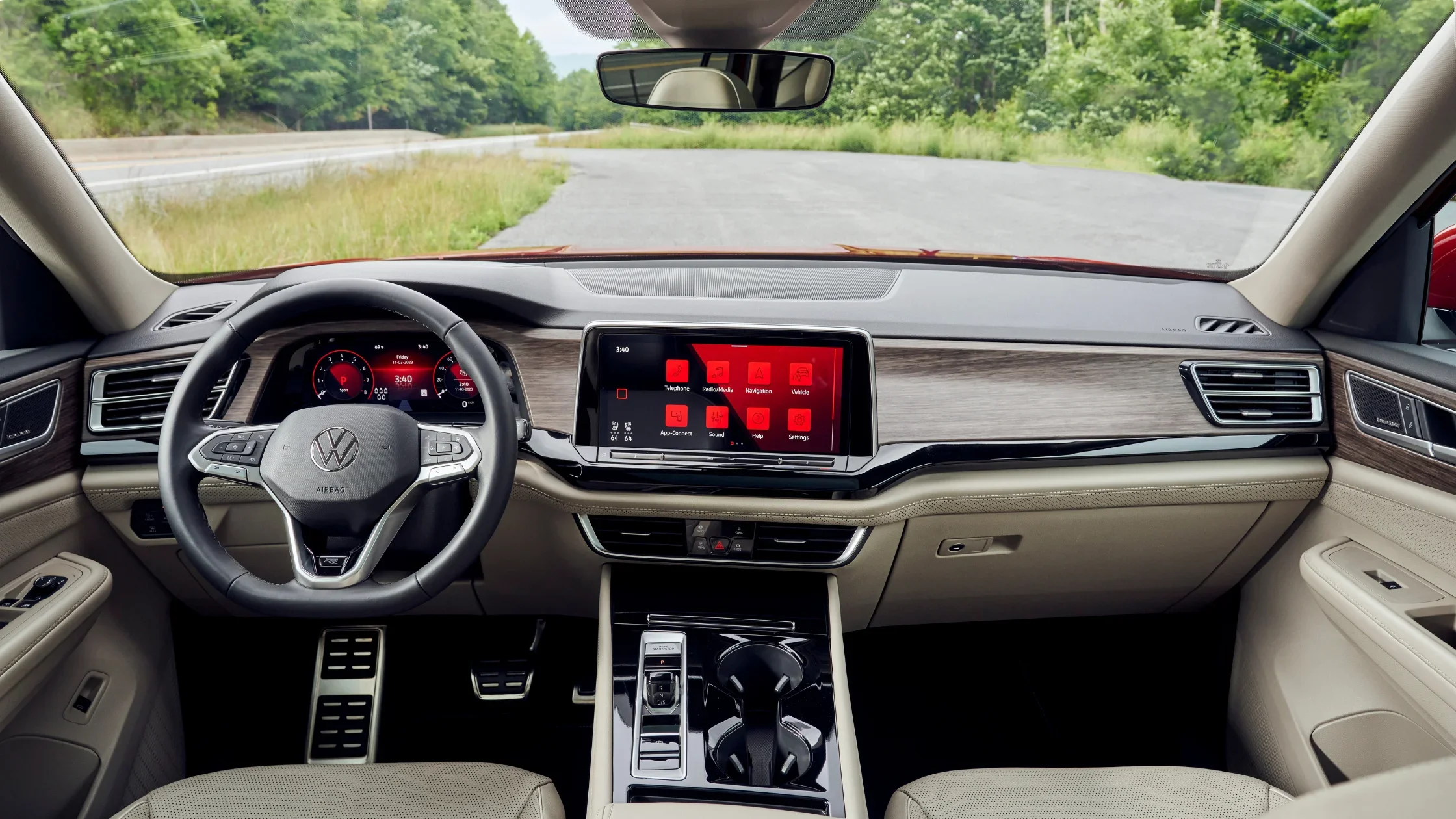

Every 2026 Volkswagen Atlas includes a 12-inch floating infotainment display with voice control, Bluetooth®, multi-phone pairing, HD Radio, and SiriusXM® with 360L. Wireless App Connect supports Apple CarPlay® and Android Auto™ along with a 15-watt wireless charging pad. Six USB-C ports are standard, and eight are available. All ports except the rearview mirror port support 45-watt fast charging. Volkswagen Digital Cockpit Pro is standard and uses a 10.25-inch display with four selectable views, including a full-screen navigation view when equipped with native navigation. The system can display vehicle status, driving data, driver assistance information, and phone information.

Two audio configurations are available. Most trims include a six-speaker system, while the SEL Premium R-Line includes a Harman Kardon® system with a 400-watt, 12-channel amplifier and 12 speakers. The system includes tweeters, woofers, a center channel speaker, D pillar speakers, and a rear subwoofer.

Chassis Engineering and Structural Design

The 2026 Volkswagen Atlas is built on the MQB platform and uses high-strength and ultra-high-strength steel in key structural areas. Laser clamp welding creates wobble seam welds that increase rigidity within confined spaces. Components such as seats, the climate control unit, and electrical systems are designed for reduced weight. The suspension uses independent layouts at all four wheels. MacPherson® struts with coil springs and telescopic dampers support the front, and a multilink setup with coil springs and telescopic dampers supports the rear. The braking system includes 13.2-inch vented front discs and 12.2-inch vented rear discs paired with electronic brake pressure distribution. Electric power-assisted steering uses a 15.5 to 1 ratio and requires 2.97 turns from lock to lock.

Safety Systems and Driver Assistance Integration

The 2026 Volkswagen Atlas includes active and passive safety systems that support occupant protection. Six airbags are standard along with a rearview camera. Automatic Post Collision Braking engages after certain primary impacts based on airbag sensor data. The Intelligent Crash Response System unlocks the doors, shuts off the fuel pump, and activates hazard lights when airbags deploy or safety belt pretensioners activate.

IQ.DRIVE® is standard and integrates radar, cameras, and ultrasonic sensors. Travel Assist provides hands-on driving support from low speeds up to highway speeds. Front Assist detects potential frontal collisions with vehicles, pedestrians, and cyclists and can apply automatic braking. Active Side Assist monitors blind spots and can countersteer when Lane Assist is active. Rear Traffic Alert warns the driver about cross traffic during reversing and can apply the brakes if necessary. Adaptive Cruise Control maintains a set distance behind traffic and includes Stop and Go capability. Lane Assist helps keep the vehicle centered within marked lanes, and Emergency Assist can bring the vehicle to a controlled stop if the system detects no driver input.

SE with Technology and higher trims include Park Distance Control, which uses ultrasonic sensors to detect obstacles in front of and behind the vehicle. Maneuver Braking can apply the brakes when reversing at low speeds if an obstacle is detected. The SEL Premium R-Line includes Park Assist, which can steer the vehicle into parking spaces while the driver manages gear selection and speed. Additional available systems include Dynamic Road Sign Display, a Head-Up Display, Predictive Adaptive Cruise Control, and Area View, which provides an overhead camera perspective.
